Configure OpenLDAP Multi-Master Replication on Linux

7

In this guide, we will configure Multi-master replication of OpenLDAP server on CentOS 7 / RHEL 7. This Multi-Master replication setup is to overcome the limitation of typical Master-Slave replication where only the master server does the changes in the LDAP directory.

READ: How to configure OpenLDAP Master-Slave Replication

In the Multi-Master replication, two or more servers act as master and all these are authoritative for any change in the LDAP directory. Queries from the clients are distributed across the multiple servers with the help of replication.

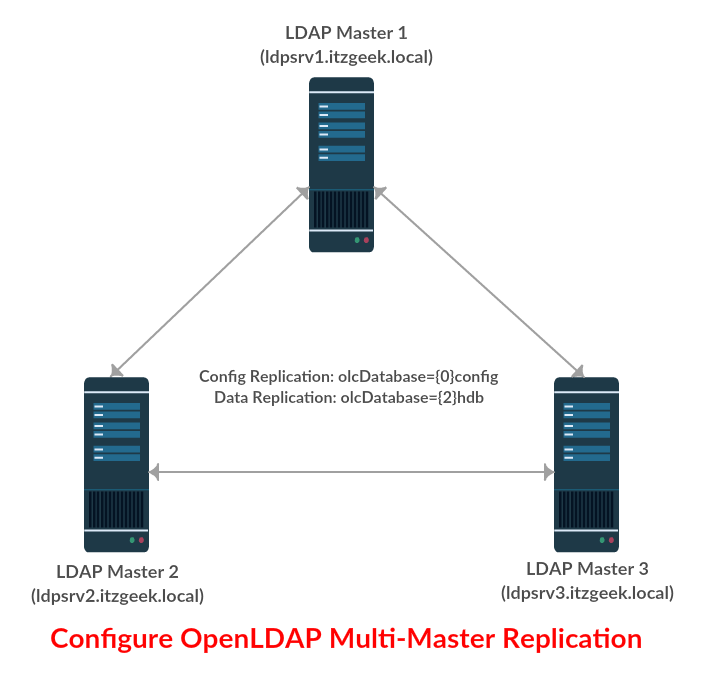

Configure OpenLDAP Multi-Master Replication
Configure OpenLDAP Multi-Master Replication

Environment

For Multi-Master replication, we are going to use three OpenLDAP servers. Details are below.

ldpsrv1.itzgeek.local (192.168.12.10)
ldpsrv2.itzgeek.local (192.168.12.20)
ldpsrv3.itzgeek.local (192.168.12.30)

Install LDAP

Install LDAP packages on all of your servers.
yum -y install openldap compat-openldap openldap-clients openldap-servers openldap-servers-sql openldap-devel

Start the LDAP service and enable it for the auto start at the system boot.

systemctl start slapd.service
systemctl enable slapd.service

Configure LDAP Logging

Configure syslog to enable LDAP logging.

echo "local4.* /var/log/ldap.log" >> /etc/rsyslog.conf
systemctl restart rsyslog

Configure OpenLDAP Multi-Master Replication

Copy the sample database configuration file to /var/lib/ldap directory and update the file permissions. You would need to perform below steps on all of your OpenLDAP servers unless otherwise stated.

cp /usr/share/openldap-servers/DB_CONFIG.example /var/lib/ldap/DB_CONFIG
chown ldap:ldap /var/lib/ldap/*

We will enable the syncprov module.

vi syncprov_mod.ldif

Copy and paste the below lines to the above syncprov_mod.ldif file.

dn: cn=module,cn=config
objectClass: olcModuleList
cn: module
olcModulePath: /usr/lib64/openldap
olcModuleLoad: syncprov.la

Now send the configuration to the LDAP server.

ldapadd -Y EXTERNAL -H ldapi:/// -f syncprov_mod.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
adding new entry "cn=module,cn=config"

Enable Config Replication

Change the olcServerID on all servers. For example, for ldpsrv1, set olcServerID to 1, for ldpsrv2, set olcServerID to 2 and for ldpsrv3, set to 3.

vi olcserverid.ldif

Copy and paste the below text into the above file.

dn: cn=config
changetype: modify
add: olcServerID
olcServerID: 1

Update the configuration on LDAP server.

ldapmodify -Y EXTERNAL -H ldapi:/// -f olcserverid.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "cn=config"

We need to generate a password for LDAP configuration replication.

slappasswd

Output:

New password:
Re-enter new password:
{SSHA}MAfw/QNizKx4NxueW7CpCSN6jeDB5Z+C

You should generate a password on each server by running the slappasswd command.

Set a password for configuration database.

vi olcdatabase.ldif

Copy and paste the below text into the above file. You need to put the password you generated in the previous step on this file.

dn: olcDatabase={0}config,cn=config
add: olcRootPW
olcRootPW: {SSHA}MAfw/QNizKx4NxueW7CpCSN6jeDB5Z+C

Update the configuration on LDAP server.

ldapmodify -Y EXTERNAL -H ldapi:/// -f olcdatabase.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "olcDatabase={0}config,cn=config"

Now we will set up the configuration replication on all servers.

vi configrep.ldif

Copy and paste the below text into the above file.

### Update Server ID with LDAP URL ###

dn: cn=config
changetype: modify
replace: olcServerID
olcServerID: 1 ldap://ldpsrv1.itzgeek.local
olcServerID: 2 ldap://ldpsrv2.itzgeek.local
olcServerID: 3 ldap://ldpsrv3.itzgeek.local

### Enable Config Replication###

dn: olcOverlay=syncprov,olcDatabase={0}config,cn=config
changetype: add
objectClass: olcOverlayConfig
objectClass: olcSyncProvConfig
olcOverlay: syncprov

### Adding config details for confDB replication ###

dn: olcDatabase={0}config,cn=config
changetype: modify
add: olcSyncRepl
olcSyncRepl: rid=001 provider=ldap://ldpsrv1.itzgeek.local binddn="cn=config"
  bindmethod=simple credentials=x searchbase="cn=config"
  type=refreshAndPersist retry="5 5 300 5" timeout=1
olcSyncRepl: rid=002 provider=ldap://ldpsrv2.itzgeek.local binddn="cn=config"
  bindmethod=simple credentials=x searchbase="cn=config"
  type=refreshAndPersist retry="5 5 300 5" timeout=1
olcSyncRepl: rid=003 provider=ldap://ldpsrv3.itzgeek.local binddn="cn=config"
  bindmethod=simple credentials=x searchbase="cn=config"
  type=refreshAndPersist retry="5 5 300 5" timeout=1
-
add: olcMirrorMode
olcMirrorMode: TRUE

Now send the configuration to the LDAP server.

ldapmodify -Y EXTERNAL -H ldapi:/// -f configrep.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "cn=config"

adding new entry "olcOverlay=syncprov,olcDatabase={0}config,cn=config"

modifying entry "olcDatabase={0}config,cn=config"

Enable Database Replication

By this time, all your LDAP configurations are replicated. Now, we will enable the replication of actual data, i.e., user database. Perform below steps on any one of the nodes since the other nodes are in replication.

We would need to enable syncprov for hdb database.

vi syncprov.ldif

Copy and paste the below text into the above file.

dn: olcOverlay=syncprov,olcDatabase={2}hdb,cn=config
changetype: add
objectClass: olcOverlayConfig
objectClass: olcSyncProvConfig
olcOverlay: syncprov

Update the configuration on LDAP server.

ldapmodify -Y EXTERNAL -H ldapi:/// -f syncprov.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
adding new entry "olcOverlay=syncprov,olcDatabase={2}hdb,cn=config"

Setup replication for hdb database.

vi olcdatabasehdb.ldif

Copy and paste the below content to the above file. You may get an error for olcSuffix,olcRootDN, and olcRootPW if you have these already on your configuration. Remove the entries, if not required.

dn: olcDatabase={2}hdb,cn=config
changetype: modify
replace: olcSuffix
olcSuffix: dc=itzgeek,dc=local
-
replace: olcRootDN
olcRootDN: cn=ldapadm,dc=itzgeek,dc=local
-
replace: olcRootPW
olcRootPW: {SSHA}xtbbtC/1pJclCPzo1n3Szac9jqavSphk
-
add: olcSyncRepl
olcSyncRepl: rid=004 provider=ldap://ldpsrv1.itzgeek.local binddn="cn=ldapadm,dc=itzgeek,dc=local" bindmethod=simple
  credentials=x searchbase="dc=itzgeek,dc=local" type=refreshOnly
  interval=00:00:00:10 retry="5 5 300 5" timeout=1
olcSyncRepl: rid=005 provider=ldap://ldpsrv2.itzgeek.local binddn="cn=ldapadm,dc=itzgeek,dc=local" bindmethod=simple
  credentials=x searchbase="dc=itzgeek,dc=local" type=refreshOnly
  interval=00:00:00:10 retry="5 5 300 5" timeout=1
olcSyncRepl: rid=006 provider=ldap://ldpsrv3.itzgeek.local binddn="cn=ldapadm,dc=itzgeek,dc=local" bindmethod=simple
  credentials=x searchbase="dc=itzgeek,dc=local" type=refreshOnly
  interval=00:00:00:10 retry="5 5 300 5" timeout=1
-
add: olcDbIndex
olcDbIndex: entryUUID  eq
-
add: olcDbIndex
olcDbIndex: entryCSN  eq
-
add: olcMirrorMode
olcMirrorMode: TRUE

Once you have updated the file, send the configuration to the LDAP server.

ldapmodify -Y EXTERNAL  -H ldapi:/// -f olcdatabasehdb.ldif

Output:

SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
modifying entry "olcDatabase={2}hdb,cn=config"

Make changes to the olcDatabase={1}monitor.ldif file to restrict the monitor access only to LDAP root (ldapadm) user, not to others.

# vi monitor.ldif

dn: olcDatabase={1}monitor,cn=config
changetype: modify
replace: olcAccess
olcAccess: {0}to * by dn.base="gidNumber=0+uidNumber=0,cn=peercred,cn=external, cn=auth" read by dn.base="cn=ldapadm,dc=itzgeek,dc=local" read by * none

Once you have updated the file, send the configuration to the LDAP server.

ldapmodify -Y EXTERNAL  -H ldapi:/// -f monitor.ldif

Add the LDAP schemas.

ldapadd -Y EXTERNAL -H ldapi:/// -f /etc/openldap/schema/cosine.ldif
ldapadd -Y EXTERNAL -H ldapi:/// -f /etc/openldap/schema/nis.ldif
ldapadd -Y EXTERNAL -H ldapi:/// -f /etc/openldap/schema/inetorgperson.ldif

Generate base.ldif file for your domain.

# vi base.ldiff

dn: dc=itzgeek,dc=local
dc: itzgeek
objectClass: top
objectClass: domain

dn: cn=ldapadm ,dc=itzgeek,dc=local
objectClass: organizationalRole
cn: ldapadm
description: LDAP Manager

dn: ou=People,dc=itzgeek,dc=local
objectClass: organizationalUnit
ou: People

dn: ou=Group,dc=itzgeek,dc=local
objectClass: organizationalUnit
ou: Group

Build the directory structure.

ldapadd -x -W -D "cn=ldapadm,dc=itzgeek,dc=local" -f base.ldif

Output:

Enter LDAP Password:
adding new entry "dc=itzgeek,dc=local"

adding new entry "cn=ldapadm ,dc=itzgeek,dc=local"

adding new entry "ou=People,dc=itzgeek,dc=local"

adding new entry "ou=Group,dc=itzgeek,dc=local"

Test the LDAP replication

Let’s create a user LDAP called “ldaptest“ in any one of your master servers, to do that, create a .ldif file on the ldpsrv1.itzgeek.local (in my case).

[root@ldpsrv1 ~]# vi ldaptest.ldif

Update the above file with below content.

dn: uid=ldaptest,ou=People,dc=itzgeek,dc=local
objectClass: top
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
cn: ldaptest
uid: ldaptest
uidNumber: 9988
gidNumber: 100
homeDirectory: /home/ldaptest
loginShell: /bin/bash
gecos: LDAP Replication Test User
userPassword: {crypt}x
shadowLastChange: 17058
shadowMin: 0
shadowMax: 99999
shadowWarning: 7

Add a user to LDAP server using the ldapadd command.

[root@ldpsrv1 ~]# ldapadd -x -W -D "cn=ldapadm,dc=itzgeek,dc=local" -f ldaptest.ldif

Output:

Enter LDAP Password:
adding new entry "uid=ldaptest,ou=People,dc=itzgeek,dc=local"

Search for “ldaptest” on another master server (ldpsrv2.itzgeek.local).

[root@ldpsrv2 ~]# ldapsearch -x cn=ldaptest -b dc=itzgeek,dc=local

Output:

# extended LDIF
#
# LDAPv3
# base <dc=itzgeek,dc=local> with scope subtree
# filter: cn=ldaptest
# requesting: ALL
#

# ldaptest, People, itzgeek.local
dn: uid=ldaptest,ou=People,dc=itzgeek,dc=local
objectClass: top
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
cn: ldaptest
uid: ldaptest
uidNumber: 9988
gidNumber: 100
homeDirectory: /home/ldaptest
loginShell: /bin/bash
gecos: LDAP Replication Test User
userPassword:: e2NyeXB0fXg=
shadowLastChange: 17058
shadowMin: 0
shadowMax: 99999
shadowWarning: 7

# search result
search: 2
result: 0 Success

# numResponses: 2
# numEntries: 1

Now, set a password for the user created on ldpsrv1.itzgeek.local by going to ldpsrv2.itzgeek.local. If you can able to set the password, that means the replication is working as expected.

[root@ldpsrv2 ~]# ldappasswd -s password123 -W -D "cn=ldapadm,dc=itzgeek,dc=local" -x "uid=ldaptest,ou=People,dc=itzgeek,dc=local"

Where,

-s specify the password for the username

-x username for which the password is changed

-D Distinguished name to authenticate to the LDAP server.

In Master-Slave replication topology, you can not set the password for LDAP user in the slave server.

Extras

Configure LDAP client to bind to the new master server, too.

authconfig --enableldap --enableldapauth --ldapserver=ldpsrv1.itzgeek.local,ldpsrv2.itzgeek.local,ldpsrv3.itzgeek.local --ldapbasedn="dc=itzgeek,dc=local" --enablemkhomedir --update

That’s All.



POSTS YOU MAY LIKE -:)

You might also like
  • Rajendra Acharya

    Hi , I followed this documentation and i am able to configure both the master servers and able to create users but my replication is not working , means when i am creating a user in Master 1 its not replicating to my Master 2 , and vice versa.

    Please help me for the replication

    • Madhusudhan

      even I have faced same issue.

      • Hello Guys. Let me try replicating your issues and Let you know.

  • sundar

    I faced the same problem. I have configured master (ubuntu 16.04) and slave (ubuntu 14.04), but replication is not working. can any one guide me? I

  • Lakshman

    Was trying to replicate using the steps mentioned above exactly, it ran with out issues on new server, but on the one that had LDAP already it was giving the below error.
    There is no change in rp.ldif files in both servers except for

    olcServerID:
    olcSyncRepl:
    provider

    [root@xxxxxx openldapbackup20170705]# ldapmodify -Y EXTERNAL -H ldapi:/// -f rp.ldif
    SASL/EXTERNAL authentication started
    SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
    SASL SSF: 0
    modifying entry “cn=config”

    modifying entry “olcDatabase={2}hdb,cn=config”
    ldap_modify: Object class violation (65)
    additional info: attribute ‘olcTLSCertificateFile’ not allowed

  • Hello All,

    This post was tested on September 2017 and checked against for user comments related to replication. The replication is working fine and faced no issues while configuring LDAP replication.

    If you face any issues, request you to check firewall. Also check LDAP logs for more information.

  • Hello Ted,

    The post has been updated with three node replication. This should work fine.

Configure OpenLDAP Multi-Master Replication on Linux

7
Never Miss Any Linux Tutorials, Guides, Tips and Free eBooks
