Monitor Windows Servers 2003 / 2008 using Nagios Server


Nagios server provides ability to monitor the windows box using the NSClient++ agent on it, you can able to monitor the attributes like Memory usage,CPU load,Disk usage,Service states,Running processes, etc.Without the agent you can not monitor any attributes, it acts as a proxy between Nagios plugin which actually does the monitoring and attributes of the machine. Nagios server does the check_nt plugin to communicate with the NSClient++ agent.

Nagios Server —–>   Check_nt   ——->   NSClient++   ——–> M/C Attributes

Follow the 2 simple steps to achieve this.

1. Install NSClient++

2. Configure Nagios Server

Install NSClient++ Agent:

Download the latest NSClient++ from the, Install it on the windows machine. While installing the agent you might require to give input such as Nagios server information, password and module selection information.

1. Install by double clicking on the installer

2. Accept the license agreement

3. Select the Typical Installation.

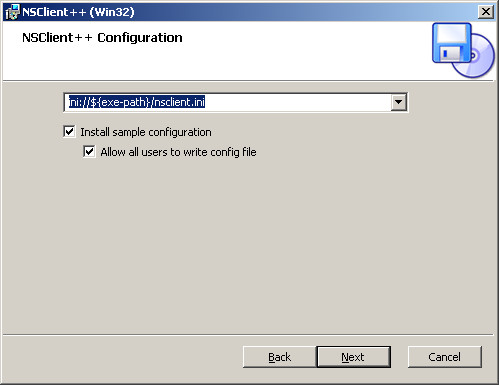

4. Select the location of the nsclient.ini file ( Leave as it is).

5. Give the Nagios server ip address and Protected password of your wish (  Later this password has to be entered on command.cfg file).

6. Finish the installation.

7. Go to the Run —> services.msc —>  NSClient++ service —> Logon —> Allow service to interact with desktop.

8. Almost you can do the all configuration while installing, if you left anything to do you can edit  the nsclient.ini file (located in the C:\Program Files\NSClient++) and make the changes:

Enable or Disable the modules listed in the [modules] section.
Optionally require a password for clients by changing the ‘password’ option in the [Settings] section.
Setup the ‘allowed_hosts’ option in the [Settings] section. Add the IP address of the Nagios server to this line, or leave it blank to allow all hosts to connect.
Setup the ‘port’ option in the [NSClient] section is uncommented and set to ‘12489’ (the default port).

9. Start it from the Start —> All Programs —> NSClient++ —> Start NSClient++

Configure Nagios Server:

Now edit the object and service information on the windows.cfg file in the Nagios object directory.
vi /usr/local/nagios/etc/objects/windows.cfg
Modify according to your requirement, normally you need to change the host_name and address variable. Below is example for defining the host.

define host{

        use             windows-server  ; Inherit default values from a template
        host_name       wipro.iii.local ; The name we’re giving to this host
        alias           Wipro   ; A longer name associated with the host
        address   ; IP address of the host

Define the Service, replace the wipro.iii.local with your host name.

define service{

        use                     generic-service
        host_name               wipro.iii.local
        service_description     NSClient++ Version
        check_command           check_nt!CLIENTVERSION


define service{

use                     generic-service

host_name               wipro.iii.local

service_description     Uptime

check_command           check_nt!UPTIME


Password Protection:

While installing if you have given the password, you will need to modify the check_nt command definition to include the password. Open the commands.cfg file for editing.
vi /usr/local/nagios/etc/objects/commands.cfg

Add the entry of password ( -s your-password that you given while installing ) right next to the -p 12489 in the file.

define command{

command_name    check_nt

command_line   $USER1$/check_nt -H $HOSTADDRESS$ -p 12489 -s x -v $ARG1$ $ARG2$


Once done, open the nagios.cfg and uncomment the following entry.

vi /usr/local/nagios/etc/nagios.cfg

Remove # from the entry.


Restart the Nagios server.

/etc/init.d/nagios restart

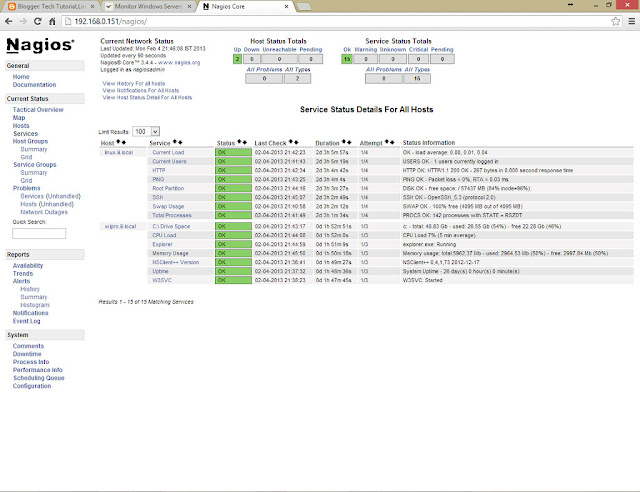

Login into the web interface and monitor the windows machine.

That.s all you have perfectly configured your Nagios monitoring client on the windows server. Now you can monitor the basic stuffs.
