Install Apache web server on openSUSE 12
Apache web server is the most widely used web server application in the word, it shares 63% word web server market. It supports all major distribution such as windows, Linux , Solaris and Mac operating system, it considerably has large usage on Unix platform due to the package bundled with operating system disc and also this is the default web server application for Linux operating system. Linux itself more secure, with Apache server; it has dominated world wide market. Here is the small tutorial about installing Apache web server on openSUSE.
1. Installing web server:
Open Terminal and switch to root user.
Apache web server package is available on openSUSE repository, install Apache server using the following command
zypper install httpd
Once Apache is installed, Start Apache web server.
systemctl start apache2.service
2. Installation Overview:
Installation of Apache server creates multiple directories and files which are very much important, some important directories are listed below.
|/etc/apache2||Main Apache root configuration directory.|
|/etc/apache2/conf.d||Additional Apache configuration files provided by third party software or Administrator defined
|/etc/apach2/httpd.conf||Main Configuration file.|
|/etc/log/apache2||Contains log file|
|/srv/www/htdocs||Main web document root directory.|
Open up the web browser and navigate to http://your-ip-address or http://localhost, it should show the following web page of “access forbidden”, it verifies that Apache server has been installed properly.
1. Virtual Host:
VirtualHost is a virtual container that handles web request from clients, web request can be either name based (Ex. www.example.com) or ip based (Ex. http://192.168.0.10). Name based virtual host can be found everywhere, almost all the web servers uses name based virtual host which is very common in current situation. More information on virtual host can be found here.
The following comprises the virtual host, virtual hosts must contain the following directives to get it work.
|<VirtualHost *:80>||This ensures the Virtual Host listening on the port 80, change this to listen on other port.|
|ServerAdmin||Mail Id of the Server administrator.|
|DocumentRoot||Location of the web documents.|
|ServerName||Domain name of the Virtual Host (like www.example.com).|
|ErrorLog||Error Log location of the particular virtual host.|
|CustomLog||Log location of the particular virtual host.|
|</VirtualHost>||End of virtual host container.|
Virtual hosts can be created either on main configuration file (/etc/apache2/httpd.conf) or on additional configuration directory ( /etc/apahce2/conf.d/*.conf). Creating the virtual host under the additional configuration directory is the best option because it would be best practice to be out of main config file. Here we look into Name based Virtual Host, there are some assumption to be made before creating the virtual host.
Create new virtual host file under additional configuration.
Add the following, virtual host explanation given above.
ServerAdmin [email protected]
CustomLog /var/log/apache2/example.com-access_log common
The above config file is shorter than the normal one, normal file includes directory browsing, SymLink support etc.. which are not necessary as for as beginners concerned.
2. Document upload:
Create “example” directory under “/srv/www/htdocs”.
Place index.html document under document root mentioned above , in our case it is /srv/www/example. Create index.html under document root.
Name based virtual host uses domain name, it requires DNS server to resolve the name. Setting up DNS server is little bit complicated as it is out of our tutorial. Host entry can be used a instead of DNS, host entry does the same work that done by DNS; as it is limited to resolve name to ip address. Host can be done by editing hosts file under /etc directory.
Add the following entry.
Save and close it. Restart the web server to take effect on changes that we did.

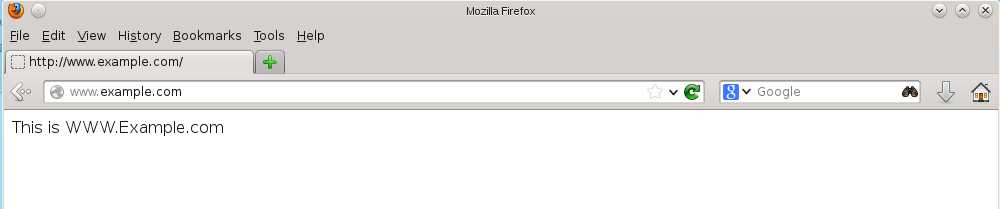

Open up the browser and navigate to http://www.example.com, if your setting are proper; you should get the following page. The following image verifies that server works according to our settings.
The server successfully configured to serve the name based virtual host, it is very commonly used in web hosting servers. Apache web server supports plain HTML document as default document file, php support can be added by installing modules. You can also add support of secure layer (ssl) by installing ssl modules.
