How To Install Zabbix Server On CentOS 8 / RHEL 8

0
Install Zabbix Server On CentOS 8
Install Zabbix Server On CentOS 8

Zabbix is an open-source enterprise-ready monitoring tool for servers, network devices, and other IT components. Since the Zabbix is enterprise-ready, you can use it for monitoring the environments ranging from small to larger.

Zabbix uses Zabbix Agent (client software) installed on the client-server to collect the data. It can also monitor standard services such as e-mail, web service without installing client software on the monitored devices.

Zabbix is released under the GPL license.

Features of Zabbix

  • Monitor system metrics like CPU, memory, disk space, network, and process (Requires Zabbix Agent).
  • Monitor VMware vCenter, VMware hypervisor, and virtual machines.
  • Automatically discover VMware hypervisor and virtual machines using low-level discovery.
  • Monitor database servers – MySQL, PostgreSQL, Oracle, and Microsoft SQL Server.
  • Zabbix has built-in Java application server monitoring.
  • Monitor network devices with SNMP.
  • Web services monitoring.
  • Monitor hardware including temperature, fan speed, and disk state.

In this guide, we will see how to install Zabbix Server on CentOS 8 / RHEL 8.

System Requirements

Hardware

Zabbix Server requires at least 128MB memory and 256MB of disk space for the installation. However, the amount of required memory and disk space depends on the number of hosts, and parameters are being monitored.

2GB RAM and 2GB of disk space would be sufficient to monitor 500 hosts

Software

Apache: 1.3.12 or later
MySQL: 5.0.3 or 8.0.x / MariaDB: Latest
PHP: 5.4.0 or later

Install Zabbix

PHP and PHP Extensions

Install the required PHP extensions using the following command.

yum -y install php php-cli php-common php-devel php-pear php-gd php-mbstring php-mysqlnd php-xml php-bcmath

Configure Zabbix repository

Zabbix packages are not available in the base OS repository. So, to get Zabbix packages, we need to install the Zabbix repository configuration package.

Zabbix 4.0 (LTS)

rpm -Uvh https://repo.zabbix.com/zabbix/4.0/rhel/8/x86_64/zabbix-release-4.0-2.el8.noarch.rpm

Zabbix 4.4 (Latest)

rpm -Uvh https://repo.zabbix.com/zabbix/4.4/rhel/8/x86_64/zabbix-release-4.4-1.el8.noarch.rpm

Install Zabbix Server

Use the yum command to install the Zabbix server with MySQL / MariaDB database support package as we are going to use MySQL / MariaDB database for our Zabbix installation.

Zabbix 4.0 (LTS)

yum install -y zabbix-server-mysql zabbix-web-mysql zabbix-agent

Zabbix 4.4 (Latest)

yum install -y zabbix-server-mysql zabbix-web-mysql zabbix-agent zabbix-apache-conf

Timezone

As a first task, we need to set TimeZone for Zabbix frontend.

vi /etc/php-fpm.d/zabbix.conf

Update the below line with the correct timezone. Find more time zones from the official site.

php_value[date.timezone] = America/New_York

Database

Install MySQL or MariaDB

Install MariaDB or MySQL on your system.

READ: How To Install MariaDB On CentOS 8 / RHEL 8

OR

READ: How To Install MySQL On CentOS 8 / RHEL 8

For this post, I will use the MariaDB database that comes with the operating system.

yum install -y mariadb-server mariadb

Create Zabbix database

Start the MariaDB service.

systemctl start mariadb

Login to MariaDB and create the database and user for our Zabbix installation.

If you are starting the MariaDB server for the first time, consider taking a look at Securing MariaDB to ensure the MariaDB instance has a root password set, no anonymous users, disallow root login remotely, and removing test database.
mysql -u root -p

Create a database with the following details.

DBName: zabbixdb
DBUser: zabbixuser
DBPassword: password

create database zabbixdb character set utf8 collate utf8_bin;

grant all privileges on zabbixdb.* to [email protected] identified by 'password';

quit;

After you created the database for the installation, initial import schema and data into it.

cd /usr/share/doc/zabbix-server-mysql/

zcat create.sql.gz | mysql -u zabbixuser -p zabbixdb

Update Database Configuration

Edit the zabbix_server.conf file to set the database details.

vi /etc/zabbix/zabbix_server.conf

Make sure you set as follows.

DBHost=localhost
DBName=zabbixdb
DBUser=zabbixuser
DBPassword=password

SELinux

If you have SELinux enabled on your server, consider disabling SELinux to enable the successful connection of the Zabbix web frontend to the server.

setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

Firewall

Configure the firewall to allow the Zabbix agent to reach the Zabbix server.

firewall-cmd --permanent --add-port=10050/tcp

firewall-cmd --permanent --add-port=10051/tcp

firewall-cmd --permanent --add-port=80/tcp

firewall-cmd --reload

Start Services

systemctl restart zabbix-server zabbix-agent httpd php-fpm

Enable the service to start automatically on system reboot.

systemctl enable zabbix-server zabbix-agent httpd mariadb

Setup Zabbix via Web Installer

Open up your web browser and point it to the following URL.

http://your-ip-add-ress/zabbix/

Follow the below steps to complete the Zabbix installation.

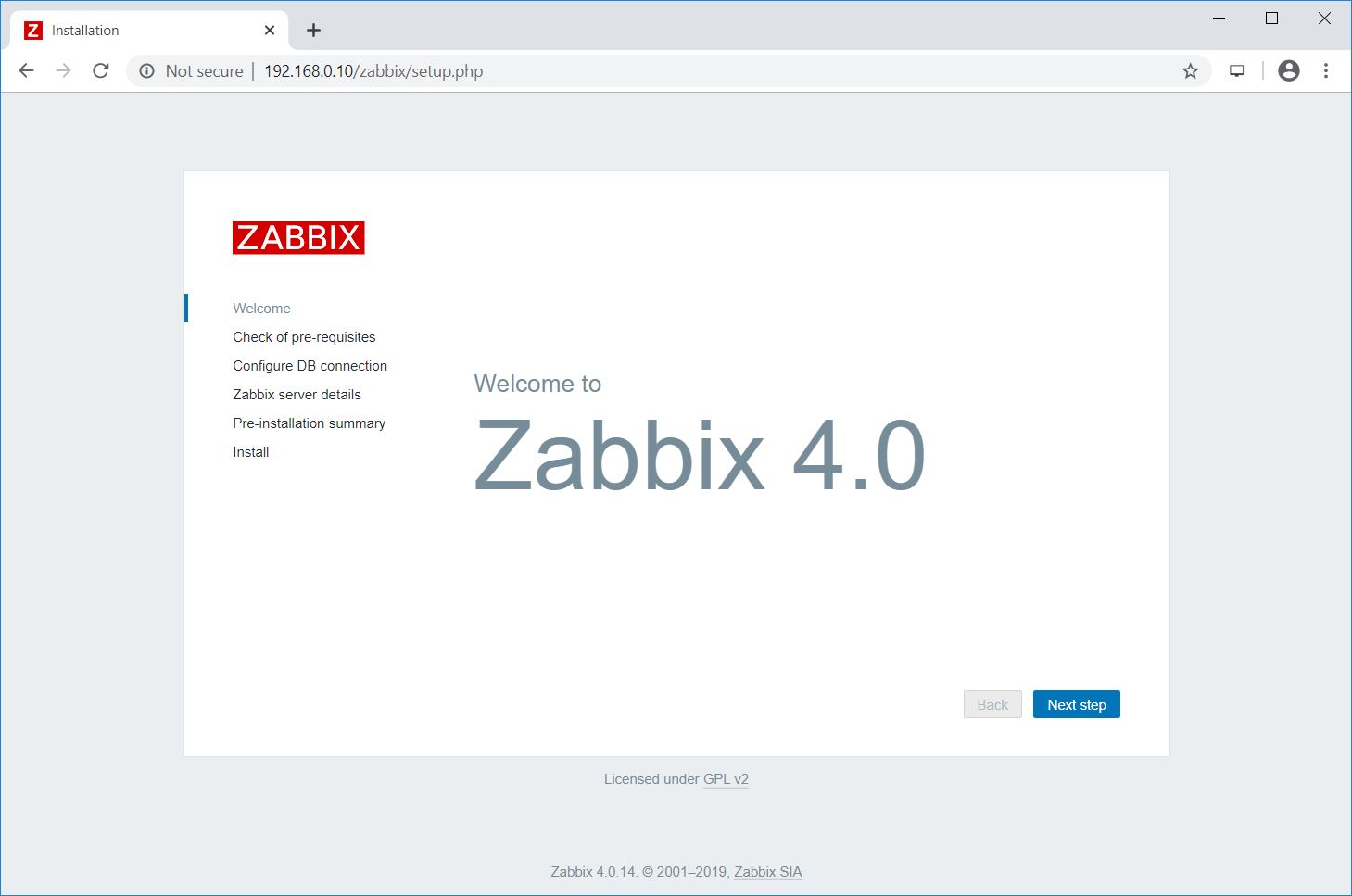

Click the Next Step on Zabbix welcome page.

Welcome Screen
Welcome Screen

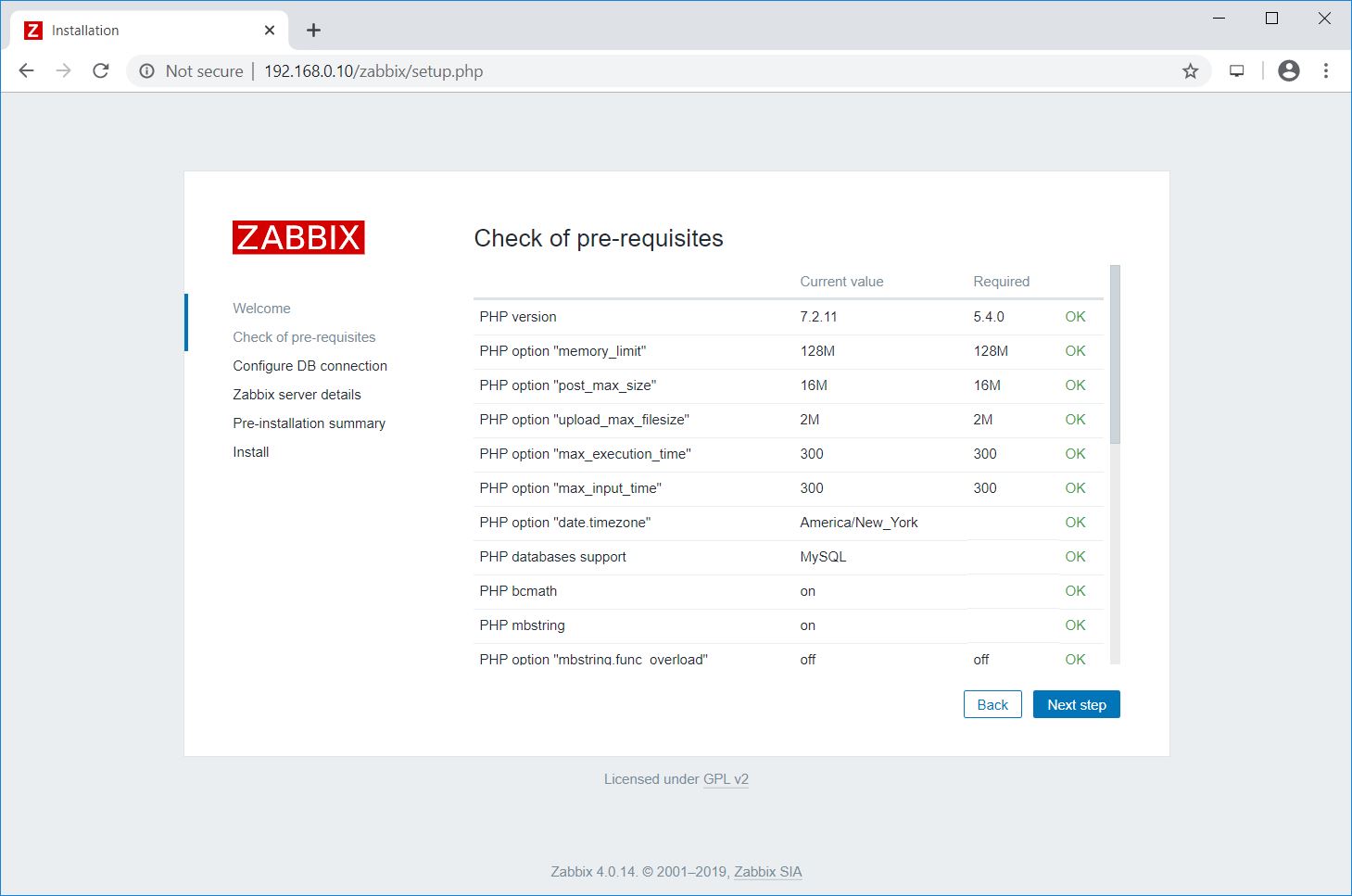

This step verifies if all pre-requisites are met for your Zabbix Installation. If there are any issues, this page will report what are all the extensions missing. Then, click on the Next Step.

Zabbix Installation Prechecks
Zabbix Installation Prechecks

Update the Zabbix database name, DB user, and password and then click the Next Step.

Database Configuration
Database Configuration

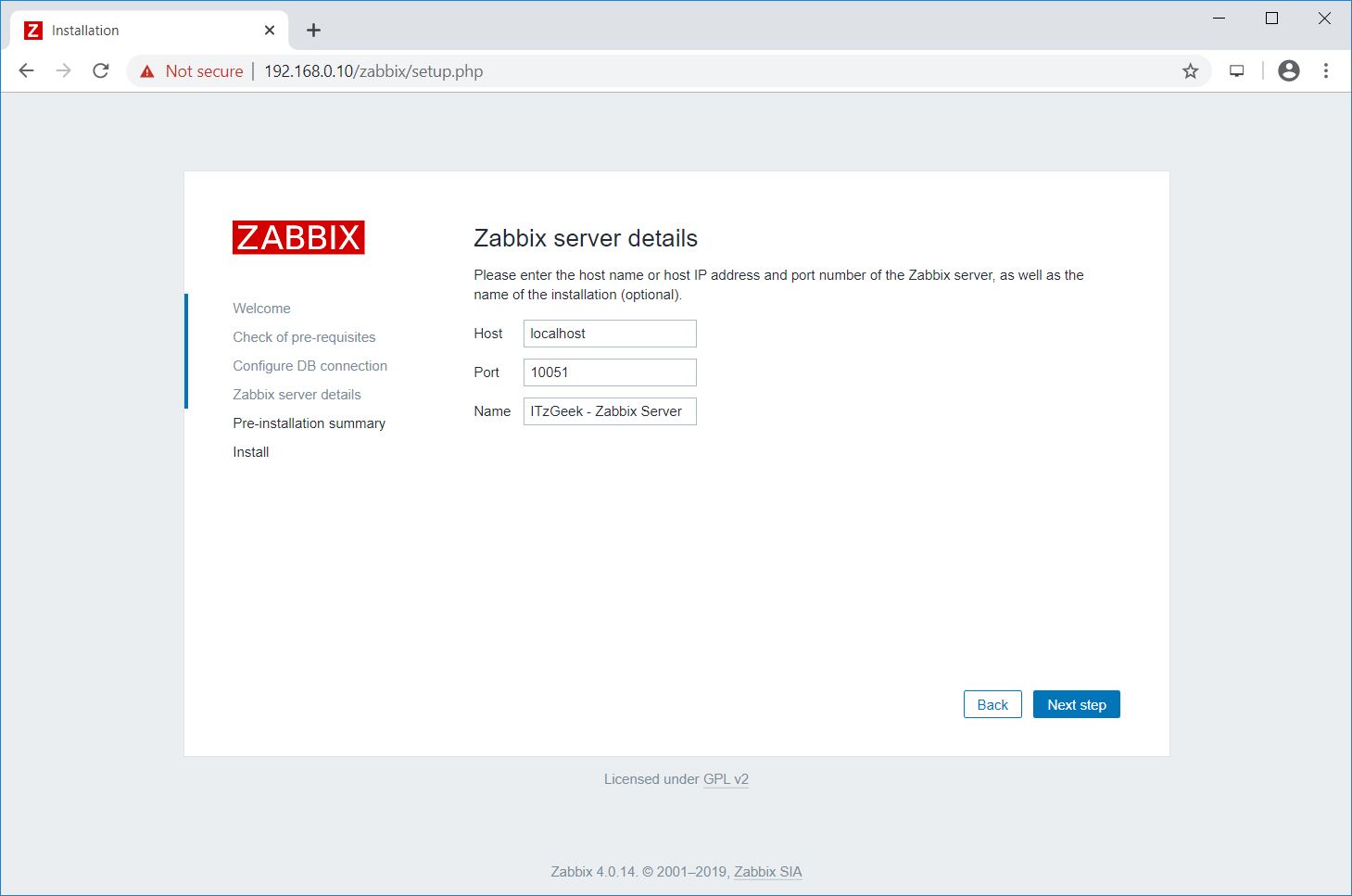

Enter the name for your Zabbix installation and then click the Next step.

Install Zabbix Server on CentOS 8 - Zabbix Server Details
Zabbix Server Details

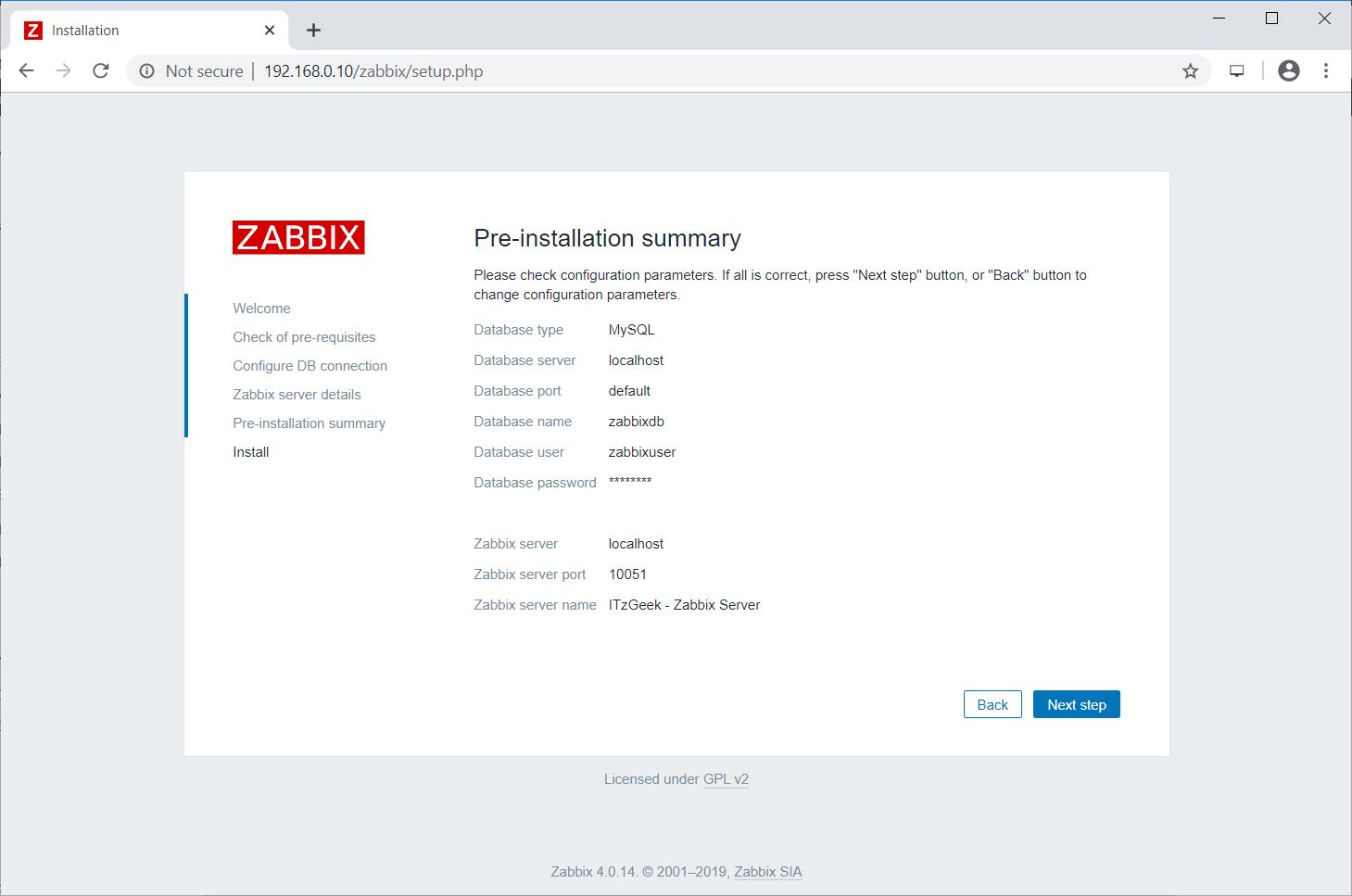

You will get a pre-installation summary like below. Click the Next step.

Install Zabbix Server on CentOS 8 - Zabbix Pre-installation Summary
Zabbix Pre-installation Summary

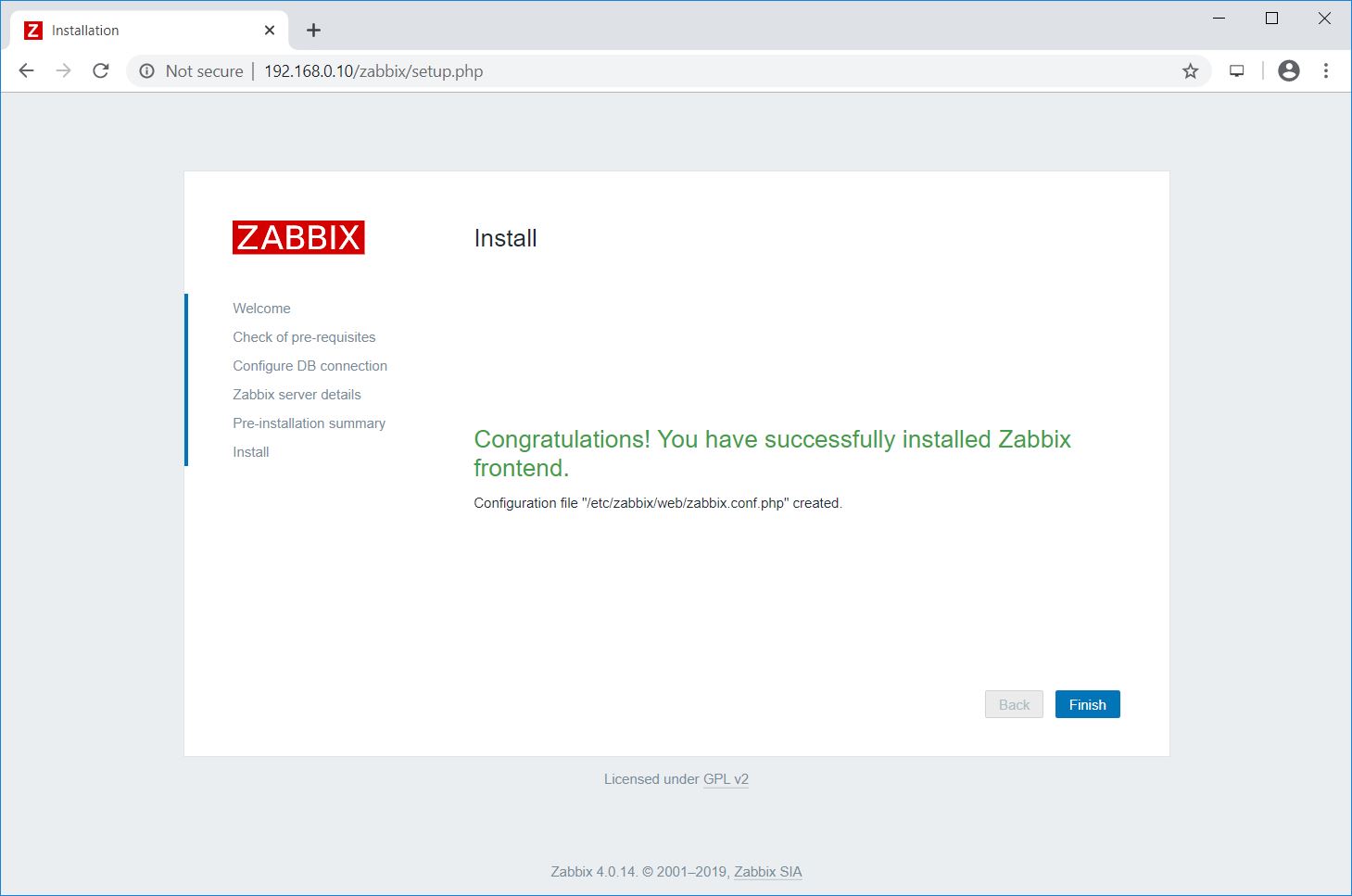

The installation of the Zabbix Server is now complete. Click the Finish.

Install Zabbix Server on CentOS 8 - Zabbix Installation Completed
Zabbix Installation Completed

Once you click Finish, the web installer will redirect you to the Zabbix web console.

Access Zabbix Dashboard

Log in with the Zabbix default username and password.

Username: Admin.

Password: zabbix.

Username is case sensitive.

"Install

Zabbix Dashboard:

"Install

Conclusion

That’s All. I hope you have learned how to install Zabbix Server on CentOS 8 / RHEL 8. You can now proceed to install Zabbix Agent and then add clients to the Zabbix server for monitoring.
